CGM-640 series

A wide range ofgrinding conditions, from rough grinding to precision grinding, and a V-v slide- structured table for high-speed , low-speed , high-precision work.

Features

· Efficient high rigidity column stricture by structural analysis obtains high precision

· High quality cast iron , rib reinforced , annealing heat treated for maximum rigidity of operation u column movements reversible by Encoder (Memory section setting)

· Designed overhanging type V-v sliding structure table realizes high precision operation in both high and low speed u Automatic down feed ofwheel head gives maximum operation convenience

· Control system for fullautomatic cycle with position displays assures intuitively easy operation. (Rough grinding , Fine grinding , Fine grinding position , spark-out and cycle stop head position)

separate hydraulic tank and oil temperature radiator system avoids the transmission of heat and vibration to the machine. (standard)

· Convenient grinding thanks to ergonomic design u Table movements reversible by proximity sensor suitable for wide range of grinding from heavy grinding to precision grinding

· Current position and grinding state is constantly displayed during automatic cycle

· Automatic continuous lubrication on allslide ways

· Handle intensively arranged on the front of machine u centralized control panel for easy operation

UP/ DOWN servo motor transfer system	3 Axis Auto controller

Features

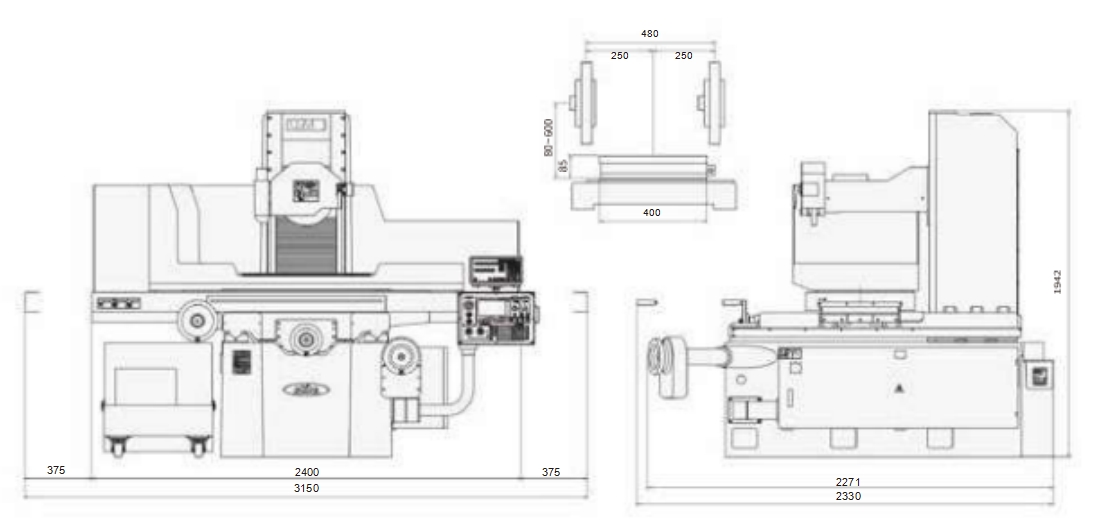

Dimension

Accessories

Chiller Cooling Low Noise Hydraulic Tank	Left and Right Continuous Oil Lubrication System	Balance Table(BUBBLE LEVEL)
