CGM-850/1050 series
- Commodity name： CGM-850/1050 series
Description
Automatic precision control and repetitive processing can be performed using servo motors on the upper and lower axes.
Features
· Excellent materials , high rigid structural design , and after the aging treatment, no deformation , strong shock resistance
· High-precision scraped to ensure the precision of the machine
· Double v rai l design, the guide surface affixed with a special wear-resistant layer (TURCITE-B) , smooth movement and durable
· Automatic lubrication system , prolong the service life of the machine
· Independent hydraulic unit with a cooling system to reduce the infuence of vibration and oll temperature
· Unique design of the spindle , P4 ultra-precision spindle bearing level to ensure the high precision of the spindle u controller with automatic fault detection and display functions , convenient maintenance
· Cooling device with a magnet fiter, maintain the purity of the Cooling fluid and improve the grinding accuracy
· Automatic crossing stroke adjustment
|
DESCRIPTION |
UNIT |
MODEL |
|||
|
850 |
1050 |
||||
|
Table clamping surface |
mm |
870 X 500 |
1070 X 500 |
||
|
Maximum travel ( X X Y) |
mm |
960 X 570 |
1180 X 570 |
||
|
Magnet chuck |
mm |
800 X 500 |
1000 X 500 |
||
|
Max. distance between spindle center and table |
mm |
705 (840 : SHDQ) |
|||
| Table |
Tslot size ( wide X number ) |
m m |
22 X 3n |
||
| X-Axis Traverse speed range |
m/min |
5~25 |
|||
|
Cross |
Cross feed handle wheel |
Graduation |
mm/div |
0.02 |
|
|
Revolution |
mm/rev |
5 |
|||
|
Cross auto feed rate |
increment |
m m |
0.03~10 |
||
|
continue |
m/min |
0.1~1.0 |
|||
| Maximum rapid traverse speed |
m/min |
1000 |
|||
|
Head |
Down feed handle wheel |
Graduation |
mm/div |
0.005 |
|
|
Revolution |
mm/rev |
1 |
|||
| Automatic feed per traverse volume |
mm |
0.001~0.05 |
|||
| Maximum rapid traverse speed |
mm/min |
500 |
|||
|
Spindle
|
Grinding wheel dimension |
mm |
Ø355 X 20~50t X Ø127 |
||
| 50Hz revolutions per minute |
rpm |
1450 |
|||
| 60Hz revolutions per minute |
rpm |
1750 |
|||
|
Motor |
Spindle motor |
KW |
5.25 X 4P |
||
| Hydraulic pump motor |
KW |
2.25 X 6P |
|||
| Cool uant motor |
W |
200 |
|||
| Dust collector motor |
KW |
0.75 X 2P |
|||
| Oil cooler motor |
KW |
1.5 |
|||
|
Total power consumption |
KW |
12 |
|||
|
Machine net weight (approx.) |
kg |
4800 |
6100 |
||
|
Packing gross weight (approx.) |
kg |
5200 |
6600 |
||
|
Floor space ( L X W X H ) |
mm |
3600 X 2550 X 2150 |
4400 X 2550 X 2150 |
||
|
Packing space ( L X W X H ) |
mm |
3900 X 2700 X 2550 |
4700 X 2700 X 2550 |
||

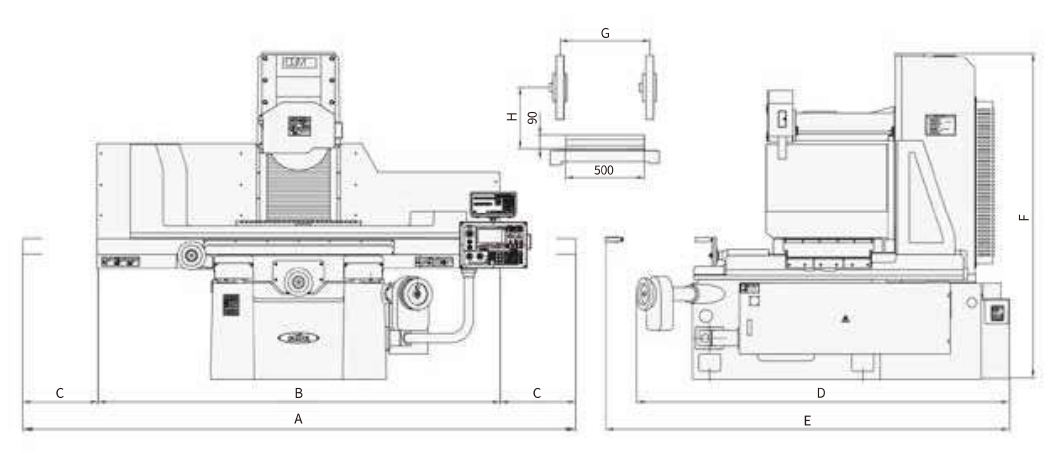

Dimension
Accessories
|
STANDARD |
|
|
Wheel flange |
1 PCS |
|
Wheel extractor |
1 PC |
|
Balance base |
1 SET |
|
Tools with box |
1 SET |
|
Electro magnetic chuck |
1 PC |
|
Coolant system |
1 SET |
|
OPTIONAL |
|
|
Dust suction system |
Grinding vise |
|
Digital counter |
Additional flange |
|
Round dresser |
Inverter |
|
Sine-dresser |
|
| Seperator Type Coolant Tank | High Precision Spindle | Dial Memory Type Wheel Flange |
 |
 |
 |
